JPB PACKAGING HOT MELT PSA
JPB PACKAGING POLYMERS & TACKY PRODUCTS

WORLD LEADING MANUFACTURER of PILLOW PACKAGING SYSTEMS

FOR HOT MELT PSA, POLYMERS & TACKY PRODUCTS

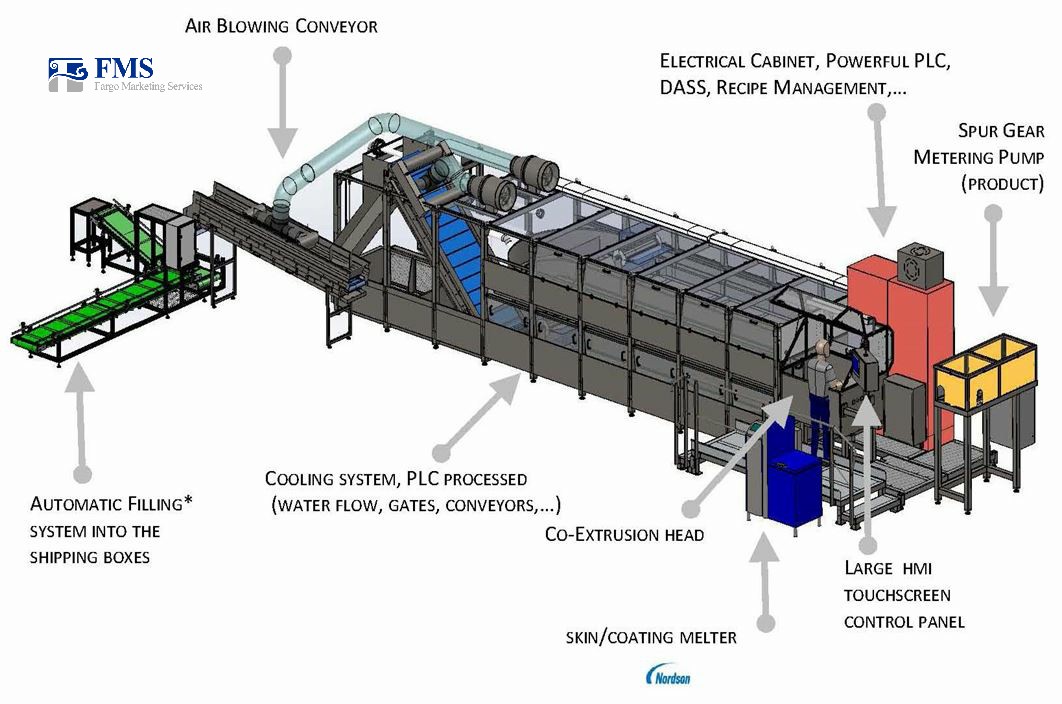

NOW - TURNKEY SYSTEM FROM THE REACTOR TO THE FILLING UNIT

FROM 250 TO 2 000 KG/HR (550 TO 4 450 LBS/HR)





FEATURES & BENEFITS OF THE CO-EXTRUSION PROCESS

  • No more silicon paper (lower labor and unpacking costs for you and your customers)
  • Extremely quick start and restart between product production cycles
  • Significantly low level of rework
  • Very stable process & liable manufacturing process (high Overall Equipment Efficiency)
  • Only one operator per machine
  • Excellent compatibility and fully miscible coating
  • Constant output per hour
  • No dust, no foreign matter ingress to the pillow itself

    • * For Automatic bulk Filling in the shipping boxes, Max pillows weight = 70gr (2,50 oz.). Rotating table available for larger pillows *

    ADHESIVES

    Reactor and Holding Tank

    Product filter (Screen Changer, hydraulic shifting)

    Heat exchanger to optimize your product workflow

    COOLING SYSTEM

    Water tank insulation, to reduce chilling power and avoid condensation

    Water plates exchanger & pump (connected to your existing water chilling unit)

    Water chilling unit, dedicated to your JPB line

    ELECTRONICS – AUTOMATISM

    PLC Remote Maintenance (internet access)

    Data Acquisition & Storage System (DASS), to perform production traceability

    Recipe management, to record and recall your adhesives set points

    Video Process Recorder

    Air-conditioning (electrical cabinet)
    MODELS DESCRIBE S250.3(1) S500.3(1) S750.3(1) S1000.3 S1200.3 S1500.3
    CAPACITY DESCRIBE 550 LBS/HR 1,100 LBS/HR 1,650 LBS/HR 2,200 LBS/HR 2,650 LBS/HR 3,300 LBS/HR
    PILLOW WEIGHT APPROX. PILLOW LENGTH APPROX.
    40 - 50 GR(2) 50 TO 120 MM STANDARD STANDARD STANDARD STANDARD
    150 TO 400 GR 90 TO 160 MM STANDARD STANDARD STANDARD STANDARD
    400 TO 800 GR 140 TO 220 MM STANDARD STANDARD STANDARD STANDARD
    500 TO 1000 GR 180 TO 260 MM STANDARD STANDARD STANDARD
    APPROX DIMENSIONS (m) Length x Width x Height (WITHOUT THE PACKAGING UNIT)(3) 12 X 1 X 3 12 TO 15 X 2 X 3 15 TO 18 X 2 X 3 15 TO 21 X 2 X 3 24 TO 30 X 2 X 3 30 TO 33 X 2 X 3
    USUAL VISCOSITY RANGE AT THE CO-EXTRUSION HEAD (CPS – MPAS) 3.000 TO 70.000 CPS –MPAS (LOWER AND HIGHER VISCOSITIES ARE ALSO POSSIBLE :PLEASE CONTACT US)

    (1) Our Model S250.3 can be upgraded on your site to reach 500 kg/hr (1100 lbs/hr)
    (2) Possibility with 150 to 400 gr pillow configuration to reach a MINIMUM weight of 60 -70 gr with an additional 2nd tooling
    (3) For information purposes and subject to change without prior notice
